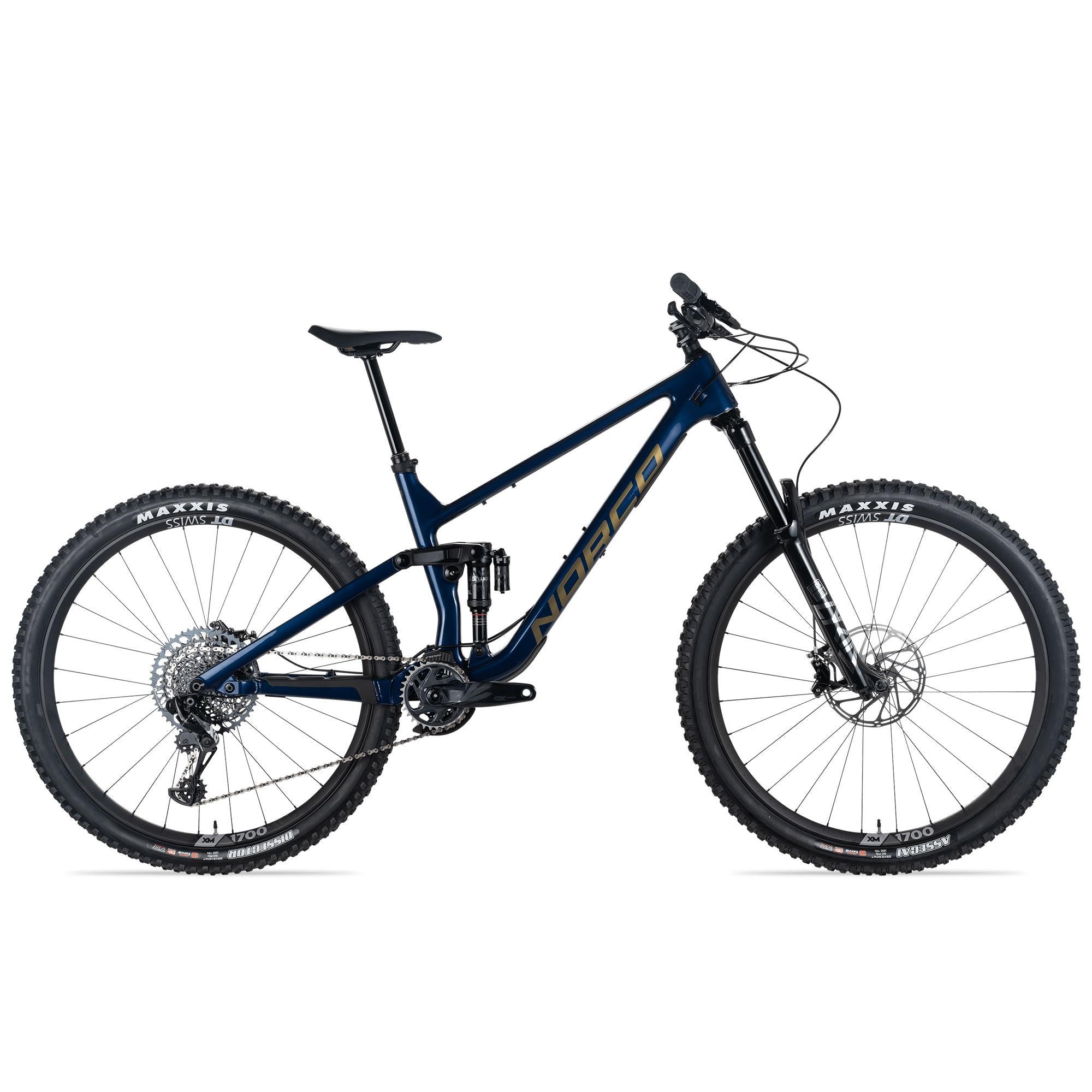

SIGHT C1

La Sight C1 aumenta la confianza de todos los pilotos en All-Mountain con una capacidad de descenso mejorada, una escalada experta y segura junto a un pedaleo eficiente.

LEARN MORE

Al volver a imaginar cómo diseñamos bicicletas, nuestro departamento de ingeniería rompió el status quo con el sistema de diseño Ride Aligned ™, abordando cómo el centro de gravedad de un piloto afecta el rendimiento de la bicicleta, para luego construir la Sight C1 y el cuadro de carbono alrededor con esta filosofía.

La Sight C1 ofrece 150 mm de recorrido RockShox Super Deluxe Select + en opciones de ruedas de 29 y 27,5 pulgadas para adaptarse a las preferencias de cada piloto y está equipada con una horquilla RockShox Lyrik Ultimate de 160 mm. La transmisión SRAM X0 Eagle y los frenos Code RSC hacen que todo fluya y disminuya la velocidad, mientras que el dropper One Up ofrece una caída personalizable según el tamaño.

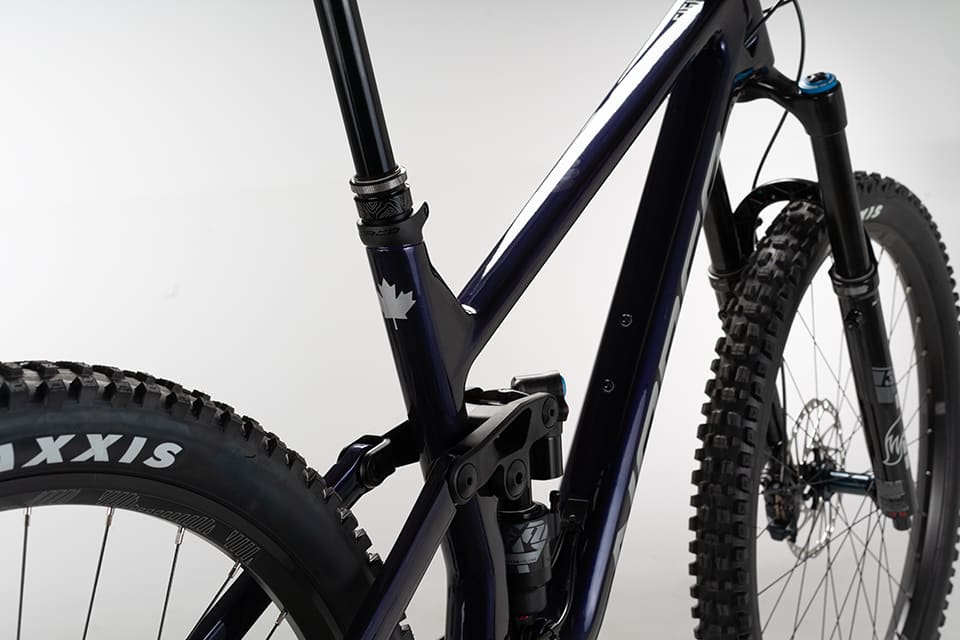

LONG-TRAVEL DROPPER POSTS

Every Sight features a short seat tube for maximum standover clearance, allowing size-specific, long-travel dropper posts to get seats completely out of the way in the rough stuff.

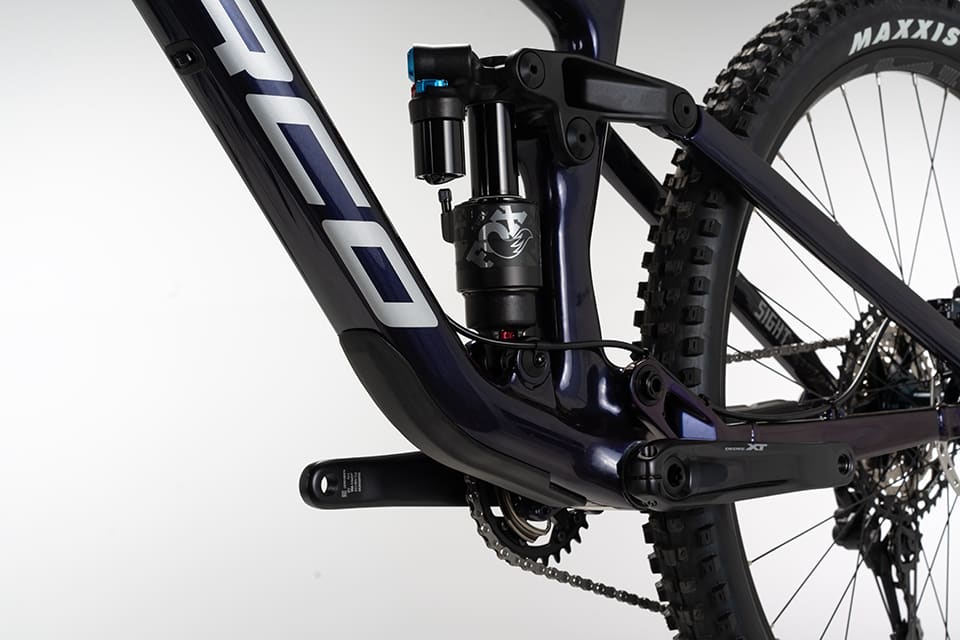

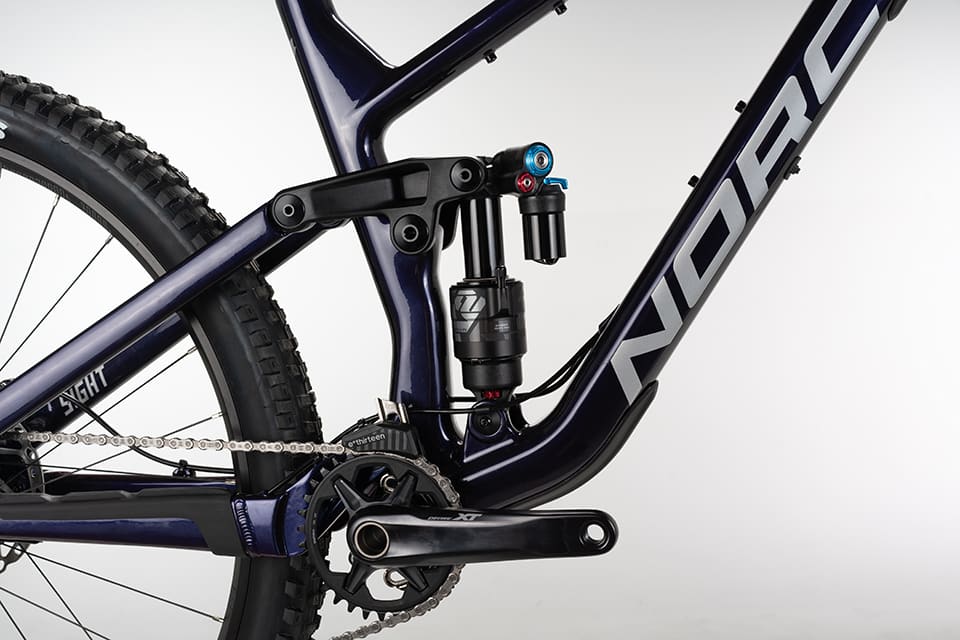

PRECISION SUSPENSION

The Sight's RockShox and Fox suspension components are mated to our precisely-engineered Ride Aligned™ kinematics to produce 150mm of travel in back and 160mm up front. Combined with the Ride Aligned™ Bike Setup Guide, the Sight's suspension is easy to dial-in for every rider.

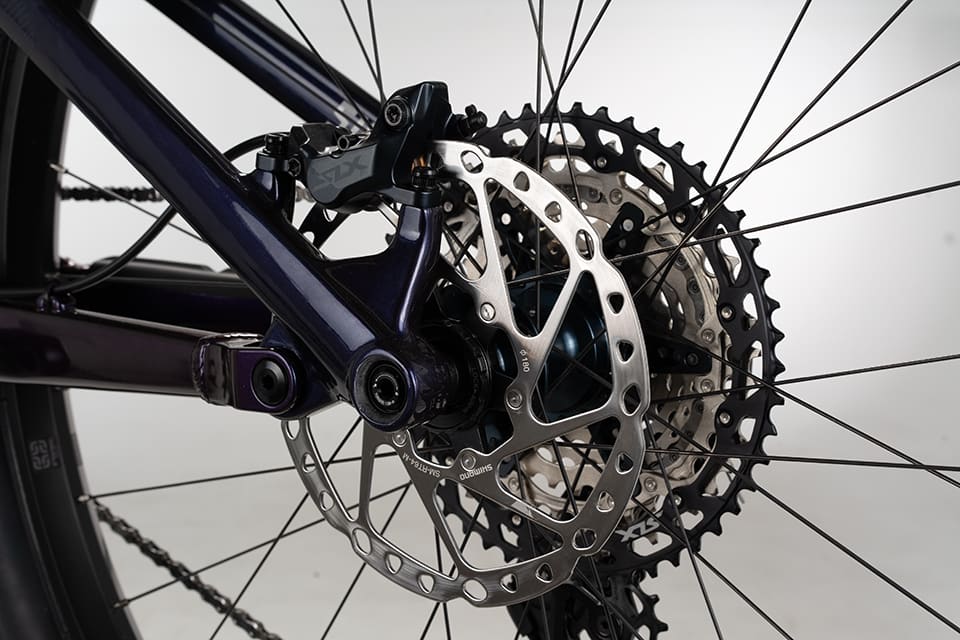

THE POWER TO STOP

We equipped every Sight with 4-piston hydraulic disc brakes and 200/180mm rotors to give you the speed-control you need to hit the perfect line on every ride and pull you back when the ruckus gets a little out of hand.

DETAILS MATTER

Every Sight can fit a full-sized water bottle regardless of frame size. Every frame size is available in both 27.5" and 29". There's enough space for 2.6" tires, but we’ve equipped 2.4's and 2.5's with tough, supportive side-walls that are lighter than DH, but tougher than Trail because we know details matter. All of them.

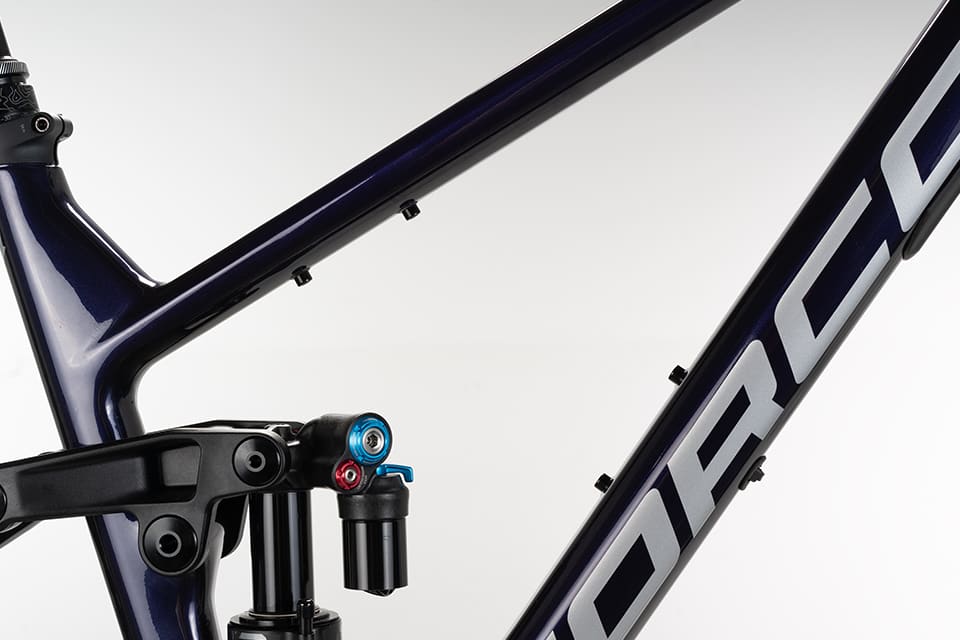

ADDED FRAME FEATURES

The Sight features custom frame protection for long, rowdy days and shuttle guard to protect it when it’s hanging off the back of your buddy’s pickup. The under-top tube mounts provide easy mounting for some of the most popular aftermarket storage bags or accessories.

ESPECIFICACIONES

FRAMESET

• FRAME: Carbon All-Mountain, 150mm, 27.5" and 29" Options, Ride Aligned™
• FORK: RockShox Lyrik Ultimate, Charger 2 RC2, 160mm, 37mm Offset (27.5), 44mm Offset (29)
• REAR SHOCK: RockShox Super Deluxe Select + RT, Debonair 2, 185x52.5mm Trunnion
• HEADSET: FSA #57 E Sealed Bearing

DRIVETRAIN

• CHAIN TENSIONER: e*thirteen TRS Plus, Aluminum Top Guide, Bash
• SHIFTER REAR: SRAM X0 Eagle
• REAR DERAILLEUR: SRAM XO1 Eagle
• CASSETTE: SRAM Eagle XG 1275, 10-52T
• CHAIN: SRAM PC
• CRANKSET: SRAM GX Eagle DUB, 34T (27.5), 32T (29), 170mm
• BOTTOM BRACKET: SRAM DUB PF92

COMPONENTS

• GRIPS: DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)
• HANDLEBAR: Deity Ridgeline, 800mm, 25mm Rise
• STEM: CNC Alloy, 40mm Length. 35mm Clamp
• SEAT POST: One Up Adjustable Dropper, 34.9mm, 150mm (S), 180mm (M, L), 210 (XL)
• DROPPER LEVER: One Up 1x lever
• SADDLE: Fizik Alpaca Terra, Wingflex
• FRONT BRAKE: SRAM Code RSC, 4 Piston, Metallic Pads
• FRONT BRAKE ROTOR: SRAM Centerline, 200mm
• REAR BRAKE: SRAM Code RSC, 4 Piston, Metallic Pads
• REAR BRAKE ROTOR: SRAM Centerline, 180mm
• BRAKE LEVERS: SRAM Code RSC

WHEELS

• FRONT HUB: DT Swiss M1700, 15x110mm Boost, 6 Bolt
• REAR HUB: DT Swiss M1700, 12x148mm Boost, XD, 6 Bolt
• RIMS: DT Swiss M1700 Wheelset
• SPOKES/NIPPLES: DT Swiss
• FRONT TIRE: Maxxis Assegai 2.5" 3C Max Terra/ EXO+ /TR
• REAR TIRE: Maxxis Dissector 2.4" WT 3C Maxx Terra / EXO+/TR
• VALVES: DT Swiss
• SEALANT: Stan's Tire Sealant - 200ml

Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

GEOMETRÍA
